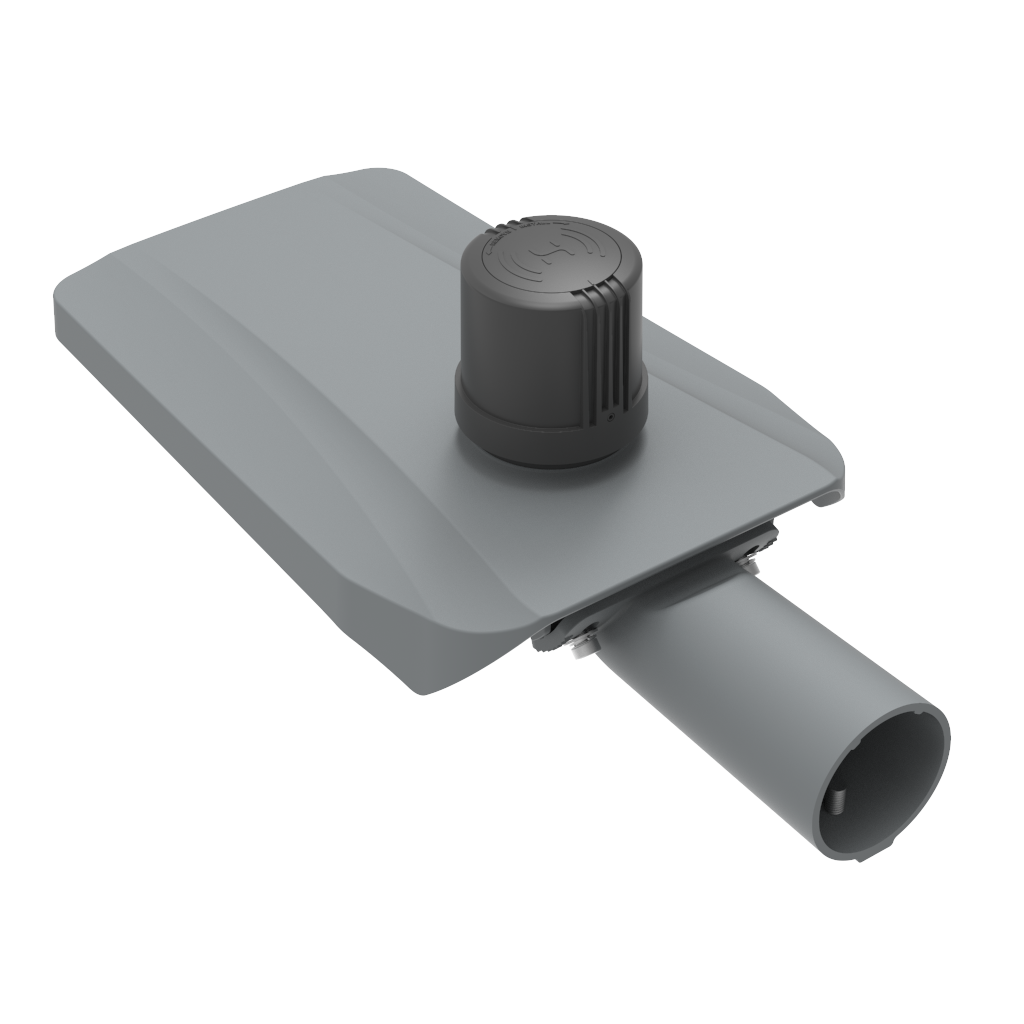

AL-AB-LL LED Street Light

1.High effciency Driver, Separate design of the lamp driver, the driver and light senor 2 in 1. it has the functions of time control and light control.
2.lmported original Lumileds 3030/5050 LED Chips.
3.Flexible adjustment of the angle.
4.The surface of lamp housing is anti-corrosion and electrophoresis processed, can be used at seaside.
5.Dust-proof, moisture proof and waterproof, lP65 rated.

Price Interview

Interview

Select the number of specifications

Please check the product information you want!

Product parameters Other

Product parameters
Power	50W	100W	150W	200W	240W
Input Voltage	90-265VAC
LED Chips	LUMILEDS 3030/128pcs	LUMILEDS 3030/192pcs	LUMILEDS 3030/240pcs	LUMILEDS 3030/288pcs	LUMILEDS 3030/288pcs
Driver	ANKOM
SPD	10KVA
Shell Mat.	Die-casting AL
Connection Size	60MM
CRI	>70
Luminous Efficiency	150-160LM/W
Luminous Flux	7500-8000LM	15000-16000LM	22500-24000LM	30000-32000LM	36000-38400LM
IP Grade	IP65
CCT	3000/4000/5000/6000K
Beam Angle	30/60/90/TYPE-2-70150/TYPE-3-15080/TYPE-4-50*140
Certifications	CE/ROHS
Warranty	5 Years
Poduct Size	447185153MM	447236185MM	497235201MM	547235201MM	547235201MM
Packing Size	502215CM	552715CM	602715CM	652715CM	652715CM
Gross Weight	1.3KGS	1.8KGS	2.3KGS	2.6KGS	2.7KGS
Other	LIGHT CONTROL FUNCTION AND FOUR-SEGMENT TIME CONTROL DIMMING ARE INCLUDED
